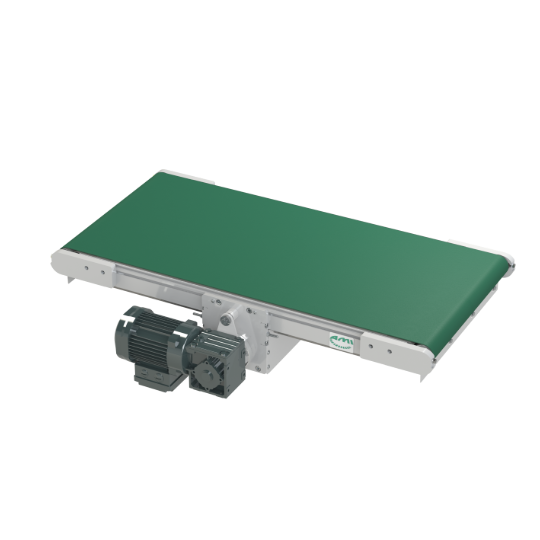

KGF 65-MA small belt conveyor

Ab: 2.346,68 €

Lieferzeit: approx. 3 weeks

The KGF 65-MA small belt conveyor has a center drive (M) with shaft-mounted gearbox (A). This belt conveyor is used for transporting goods that need to be moved horizontally and at an angle, such as containers and cardboard boxes. The KGF 65-MA can also be used as an accumulation segment and for interlinking machines and systems.



Do you need the right accessories or a custom solution?
You’re also welcome to inquire about accessories and complementary components directly with us.
We’ll provide you with personalized advice—just email us at: Sales@ami-foerdertechnik.de

Can't find the model of this conveyor you're looking for in our store?
No problem—we also supply custom designs tailored to your specifications.
Just contact us by email: Sales@ami-foerdertechnik.de

Total length:

1000 mm, 2000 mm

Belt width:

250 mm, 400 mm, 500 mm, 600 mm

Deflection diameter:

Ø52 mm

Speed:

0.1 m/s at 0.12 kW, 0.3 m/s at 0.12 kW, 0.5 m/s at 0.18 kW, 0.9 m/s at 0.18 kW

Belt type:

Febor 12 CF GR EU
