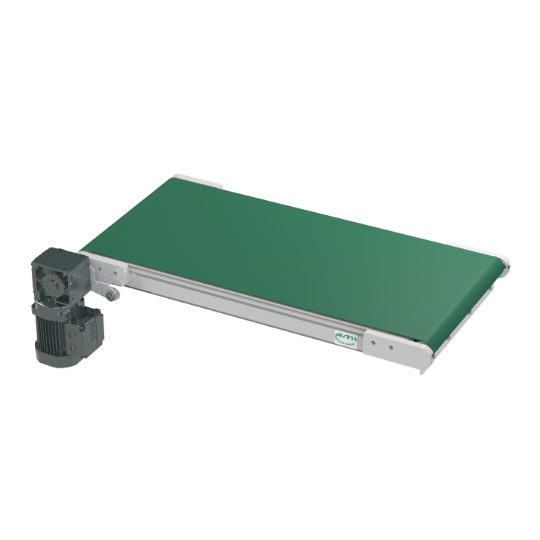

KGF 65-KA small belt conveyor

Ab: 1.370,88 €

Lieferzeit: approx. 3 weeks

The KGF 65-KA small belt conveyor has a head drive (K) with slip-on gearbox (A). This belt conveyor is used for transporting goods to be moved horizontally and inclined, such as containers and cardboard boxes. The KGF 65-KA can also be used as an accumulation segment and for interlinking machines and systems.



Can't find the model of conveyor you're looking for in our store?
No problem—we also supply custom designs tailored to your specifications.
Just contact us by email: Sales@ami-foerdertechnik.de

Total length:

1000 mm, 1500 mm, 2000 mm

Belt width:

200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 600 mm

Drive & deflection diameter:

Ø52 mm

Speed:

0.1 m/s at 0.12 kW, 0.3 m/s at 0.12 kW, 0.5 m/s at 0.18 kW

Belt type:

Febor 12 CF GR EU

Drive position (in conveying direction):

Left pulling, Pulling right
